YOUR SOLUTION FOR PROFISILAGE™

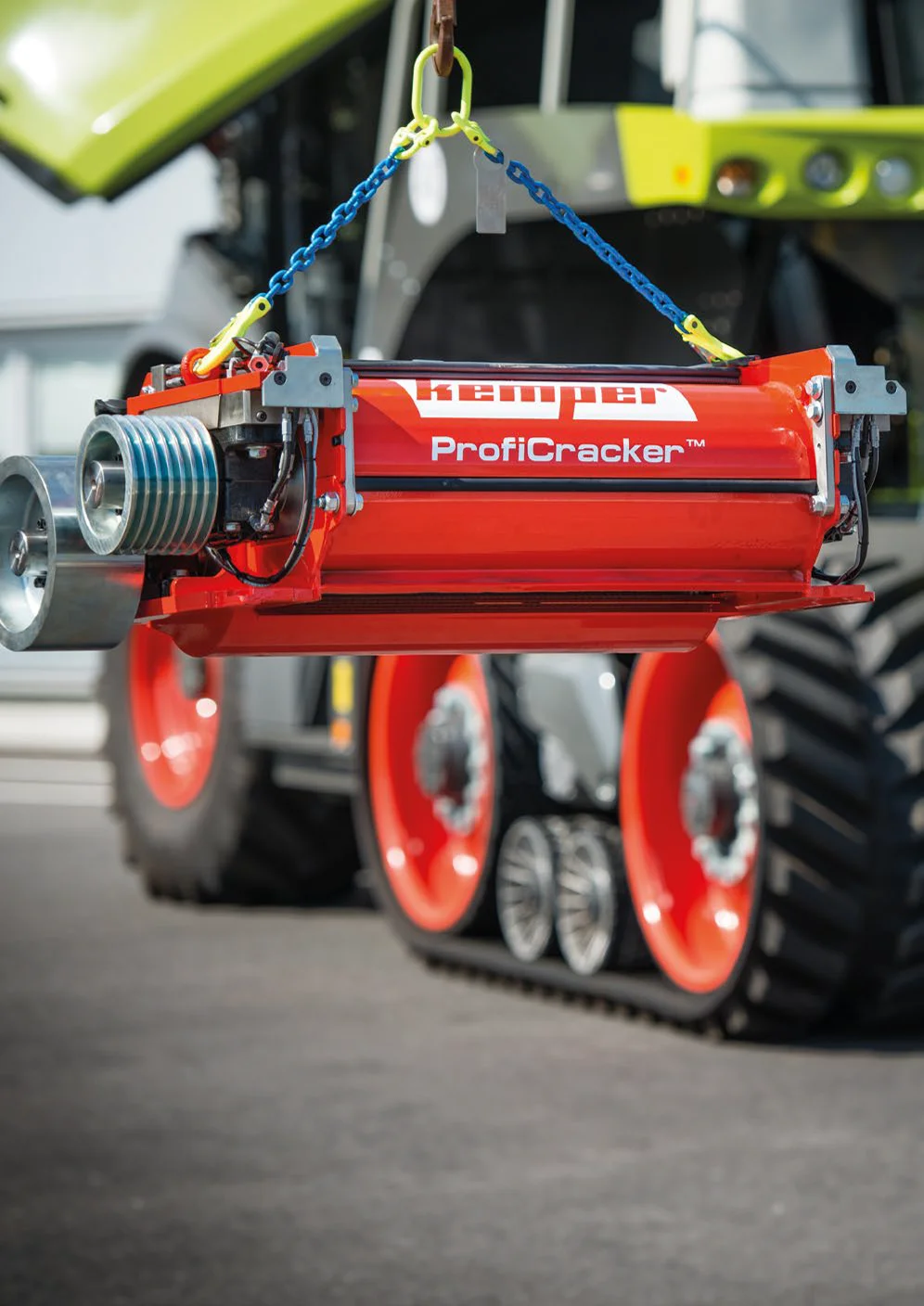

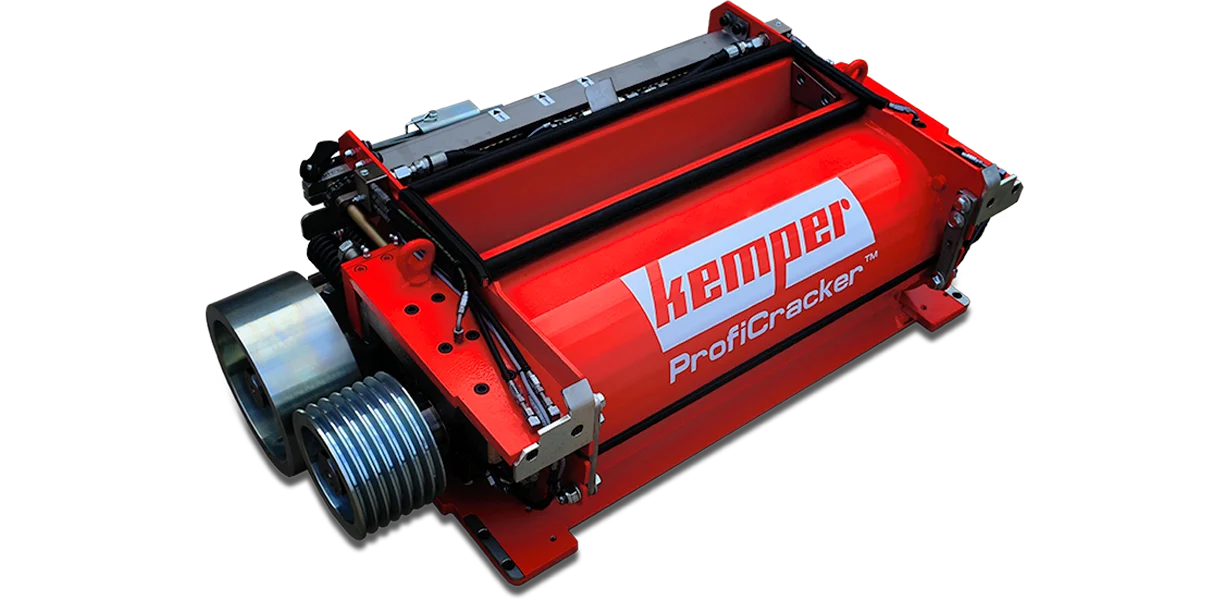

ProfiCracker™

THE DIFFERENCE LIES IN THE DETAIL.

Advantages of the KEMPER PRoficracker™

High kernel processing & residual plant splitting and fraying

For optimum feed conversion and maximum energy yield.

Robust construction

Designed for durability and reliable performance at high throughput rates.

Maintenance-friendly design

Quick access to all components saves time and reduces downtime.

High compatibility

In addition to complete crackers, KEMPER also offers replacement rollers for other makes in order to utilize the known advantages there as well.

Why PROFICRACKER™?

Improved performance for retrofitting

Performance optimization for short and long cut thanks to retrofit solution - Why invest in a new forage harvester when a ProfiCracker™ will do? KEMPER gives your chipper a second, better life! KEMPER crackers are available for Claas forage harvesters from the 491 series upwards.
High versatility

Crackers with roller diameters of approx. 200 - 280 mm in sawtooth and TwinCut™ profiles can cover all processing requirements: Corn silage short cut and long cut as well as whole plant silage.

Maximum service life

Low-wear rollers reduce replacement intervals, the unique oil lubrication protects bearings and increases service life, and integrated temperature monitoring reliably prevents breakdowns.

Dealers near you
To the dealer overview
iconicon
TECHNICAL DATA

Models FOR EXISTING HANDLERS

Technical data
C230
C245
C250
C280E
Shredder
Series 492, 493(Update 196 mm to 223.5 mm roller Ø)
494 to serial no. 49402913 (replacement cracker for "gray frame cracker")
Series 494 (from SN 49402913), 496, 497, 498, 499, 500, 502 (replacement cracker for MCC)
Series 494 (from SN49402913), 496, 497, 498, 499, 500, 502 (update from 250 mm to 274.3 mm roller Ø)
Rollers Ø
↓ 223.5 mm
250 mm ↓ 250 mm
250 mm ↓ 250 mm
↓ 274.3 mm
Roller profiles
Sawtooth (maize), TwinCut (maize), TwinCut fine (GPS)
Sawtooth (maize), TwinCut (maize), TwinCut fine (GPS)
Sawtooth (maize), TwinCut (maize), TwinCut fine (GPS)
Sawtooth (maize), TwinCut (maize), TwinCut fine (GPS)
Teeth combination
85 / 110
85 / 110
110 / 125
110 / 145
110 / 145
145 / 165
110 / 145
110 / 145
145 / 165
120 / 160
120 / 160
160 / 180
icon
icon

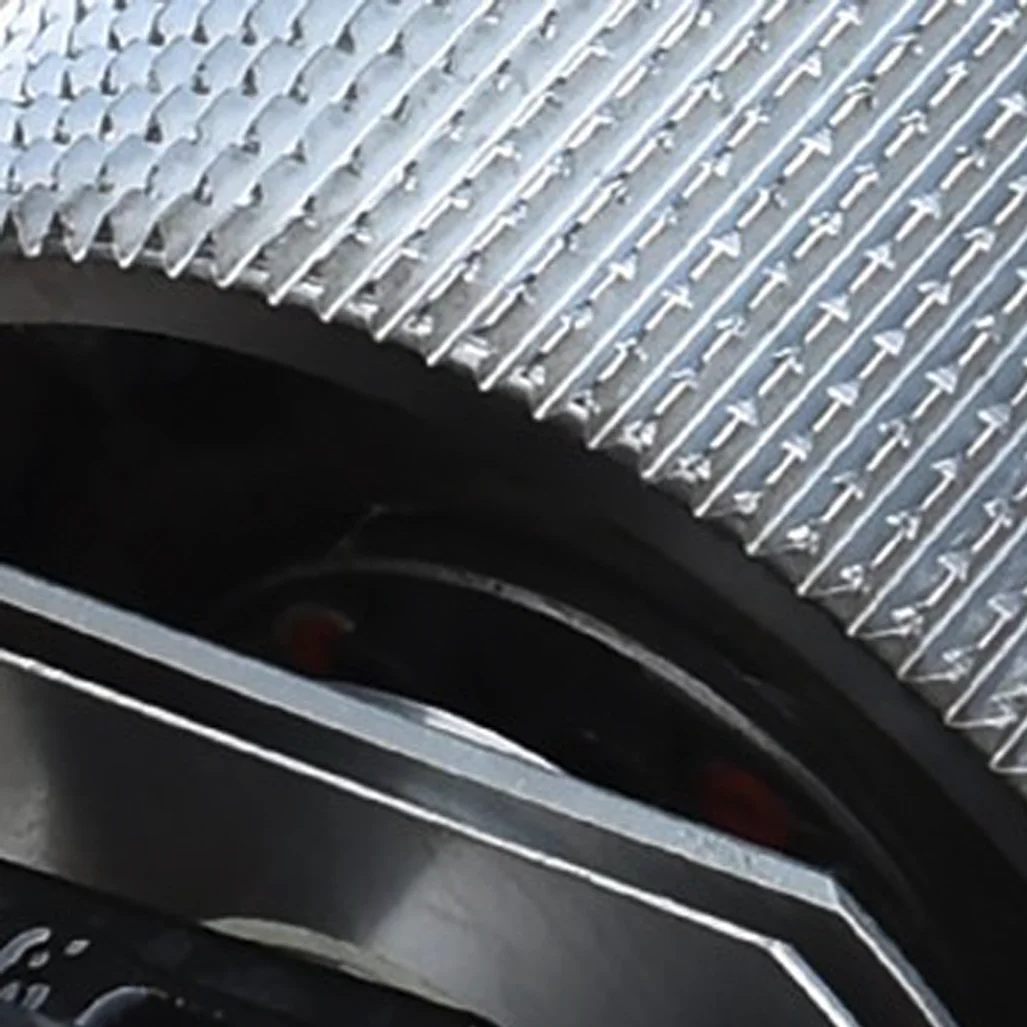

Patented TwinCut™ roller profile

Our special heat treatment and hard chromium plating process gives all our rollers a high
level of material quality and resistance to wear. The precision-manufactured rollers are
dynamically balanced for smooth operation at high speeds. Their high abrasion resistance means a large number of users have benefitted from a long service life. All shafts are replaceable through-shafts. If a shaft is damaged due to a failed bearing (caused by dirt or grease residue), your Kemper does not need an entirely new roller as only the affected
shaft can be replaced. This way you spend less money for repairs

TwinCut™ spiral-grooved roller profile:
Creates a wool-like crop structure for high nutrient yields and completely cracks open the kernels while the residual plant is perfectly split and frayed..

Short & long cut
For extreme
conditions
Additional equipment

Useful options

For special operating conditions, KEMPER offers some advantageous equipment for the ProfiCracker™ that makes work easier.
Grease lubrication
Attachment to the existing central lubrication system of the forage harvester.
Oil mist lubrication
The lubrication system can be quickly and easily connected to the compressed air line. The oil evaporated by pressure is fed into the bearings and slide rails. Protection against dirt and the ingress of dust and dirt into the bearings is prevented by overpressure.
Temperature monitoring
Continuous monitoring of cracker storage temperatures.
Electric gap adjustment
Enables precise and convenient adjustment of the roller spacing directly from the cab.
